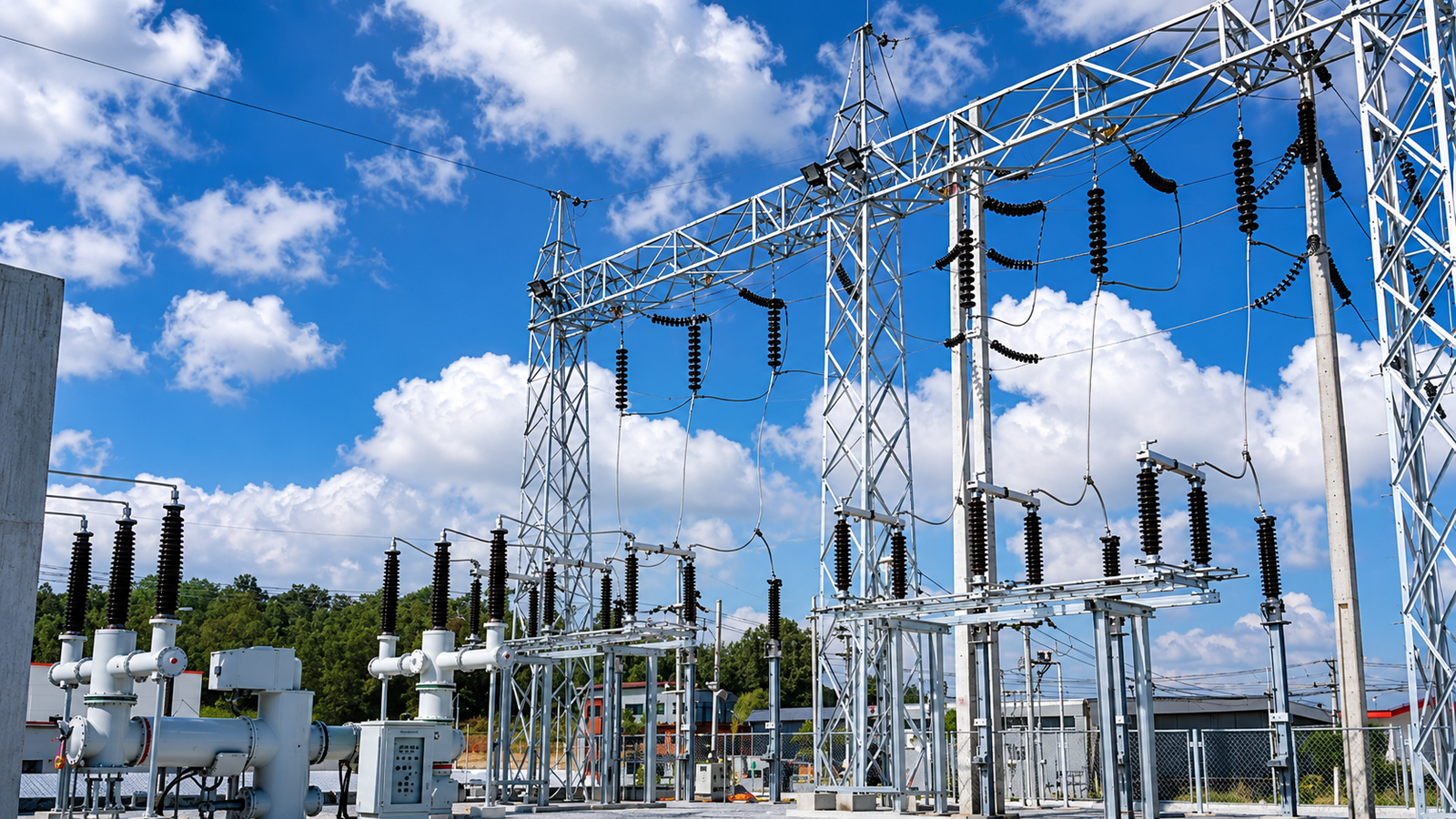

Power Sub-Station Structures

These structures include Gantries and Equipment Support Structures. Gantry structures are mainly used for guiding the power conductor from the last tower near a substation to the electrical equipment in a substation.

This structure consists of a number of columns and girder beams, which depend on the number of circuits of the line. Gantries are also used for line crossing — power conductors of one line can be underpassed with the help of the required number of gantries. Equipment Support Structures are columns supporting electric equipment in a substation.

We offer a wide range of Substation Structures for all types and varieties of Power Sub Stations up to 765 KV, with full in-house fabrication and hot dip galvanizing facilities.

Approved By

• Power Grid Corporation of India
• Himachal Pradesh State Electricity Board
• Haryana Vidyut Prasaran Nigam Ltd.
• Bihar State Power Transmission Company Ltd. & various power distribution companies

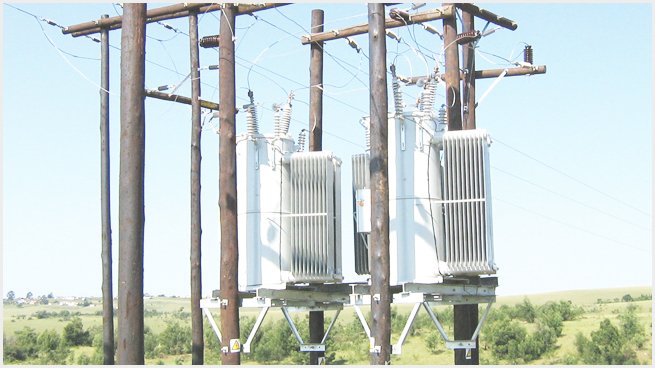

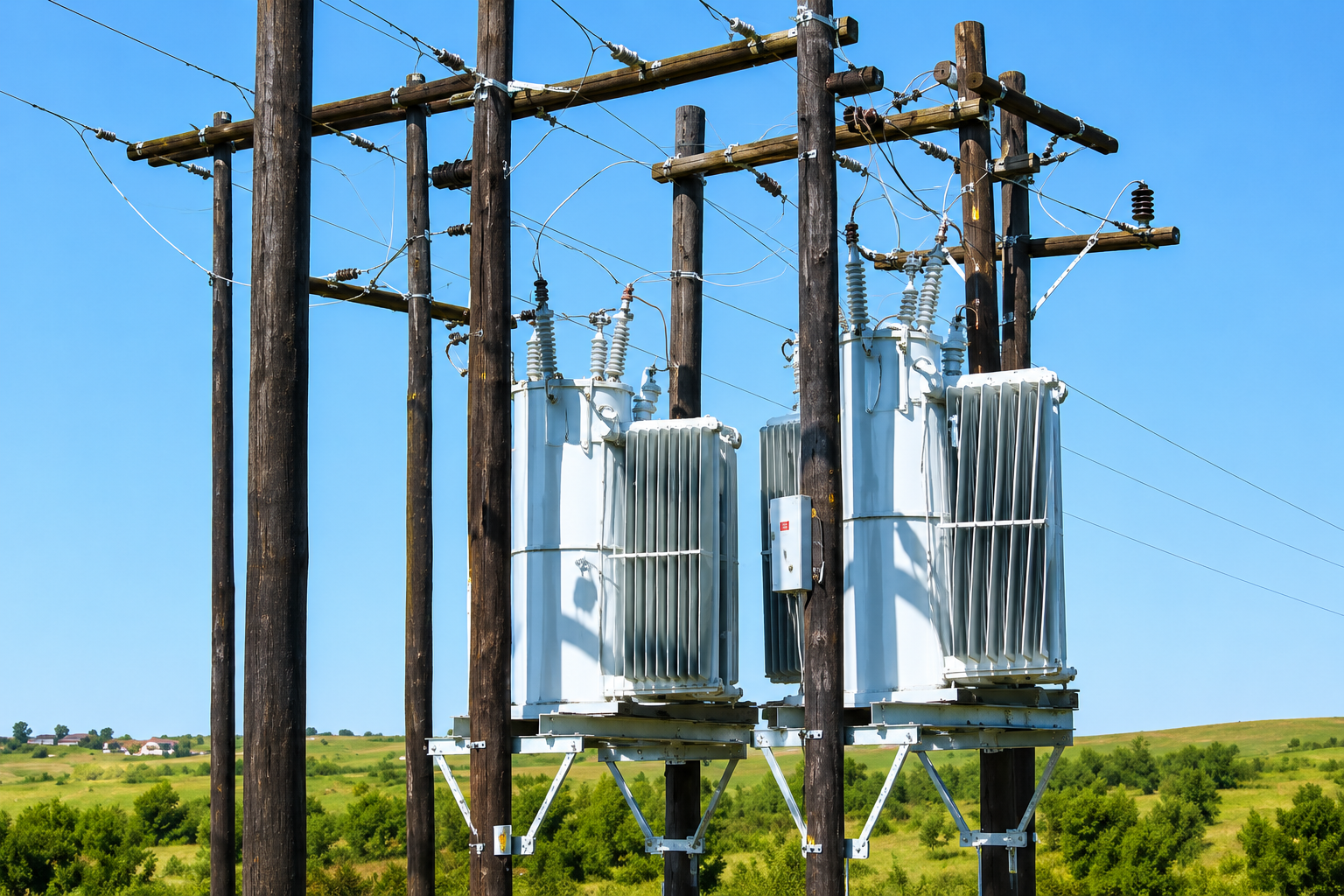

Rural Electrification Structure

The power generation sector has faced tremendous challenges, especially with rural electrification. But with the government’s increasing focus on rural electrification to establish the route of sustainable growth, this presents a business opportunity in providing steel structures for rural electrification.

We at Vishal Pipes Ltd. are a leading manufacturer & supplier of pre-fabricated galvanized items required in rural electrification in India. Our quality has been appreciated throughout the country, and we have received repeated orders too.

Approved By

• Various power distribution companies in India

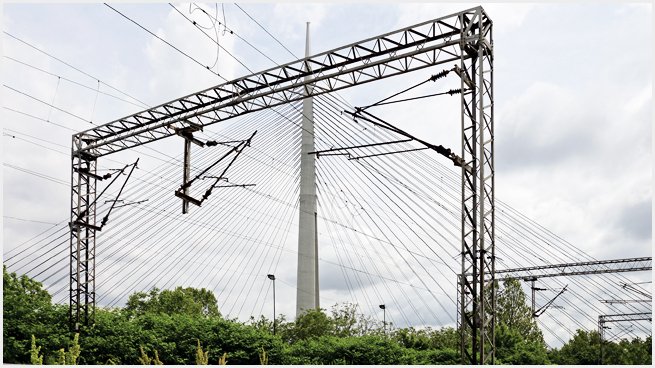

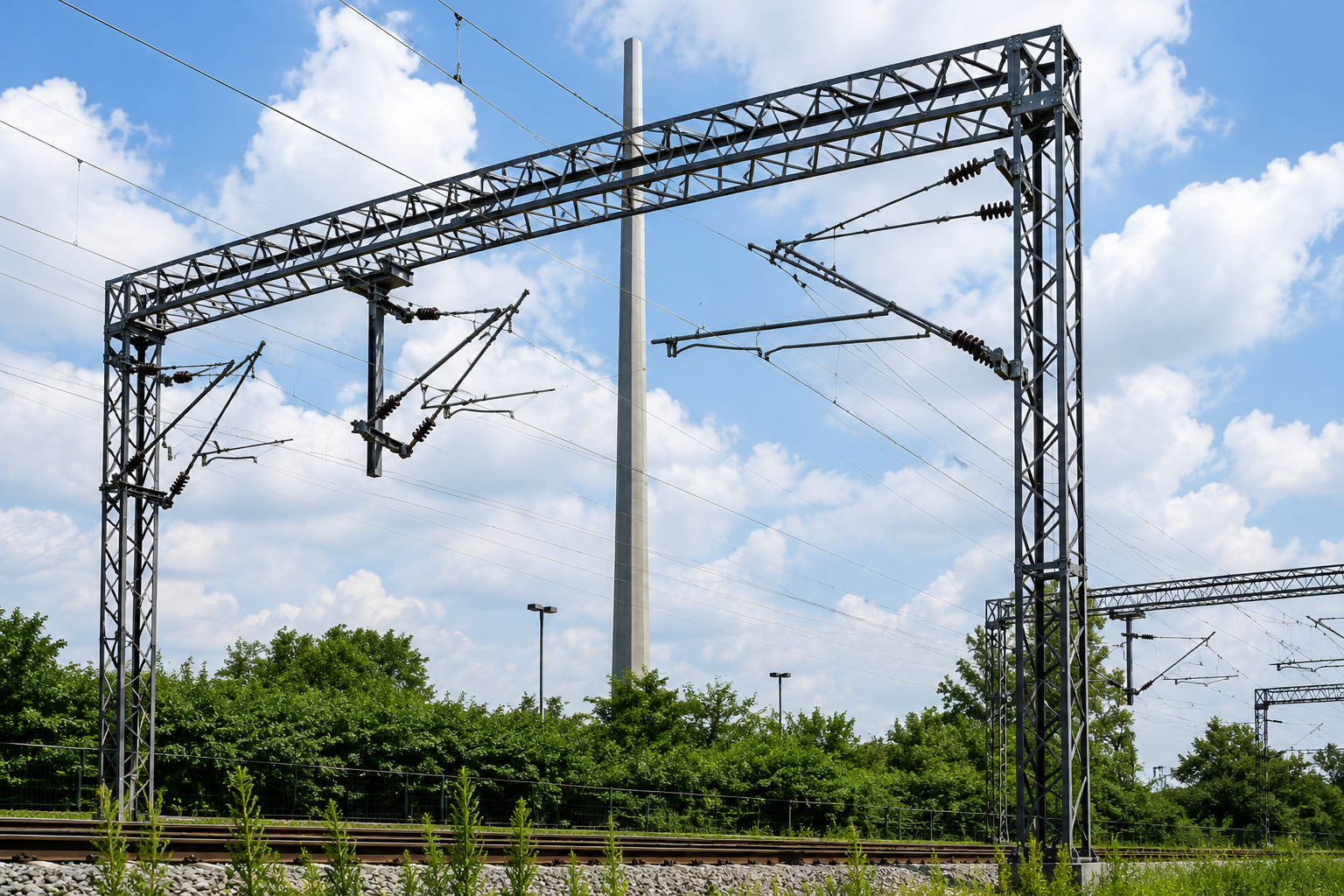

Railway OHE Structure

We are a CORE approved vendor to manufacture and supply the following structures for railway overhead electrification, manufactured and galvanised as per RDSO specifications.

• Rolled Mast
• B-series Mast
• Special Fabricated Masts
• Portals
• Two Track Cantilever (TTC)
• Traction Sub-station
• Small Part Steel (SPS)

Approved By

Central Organisation For Railway Electrification (CORE), Prayagraj

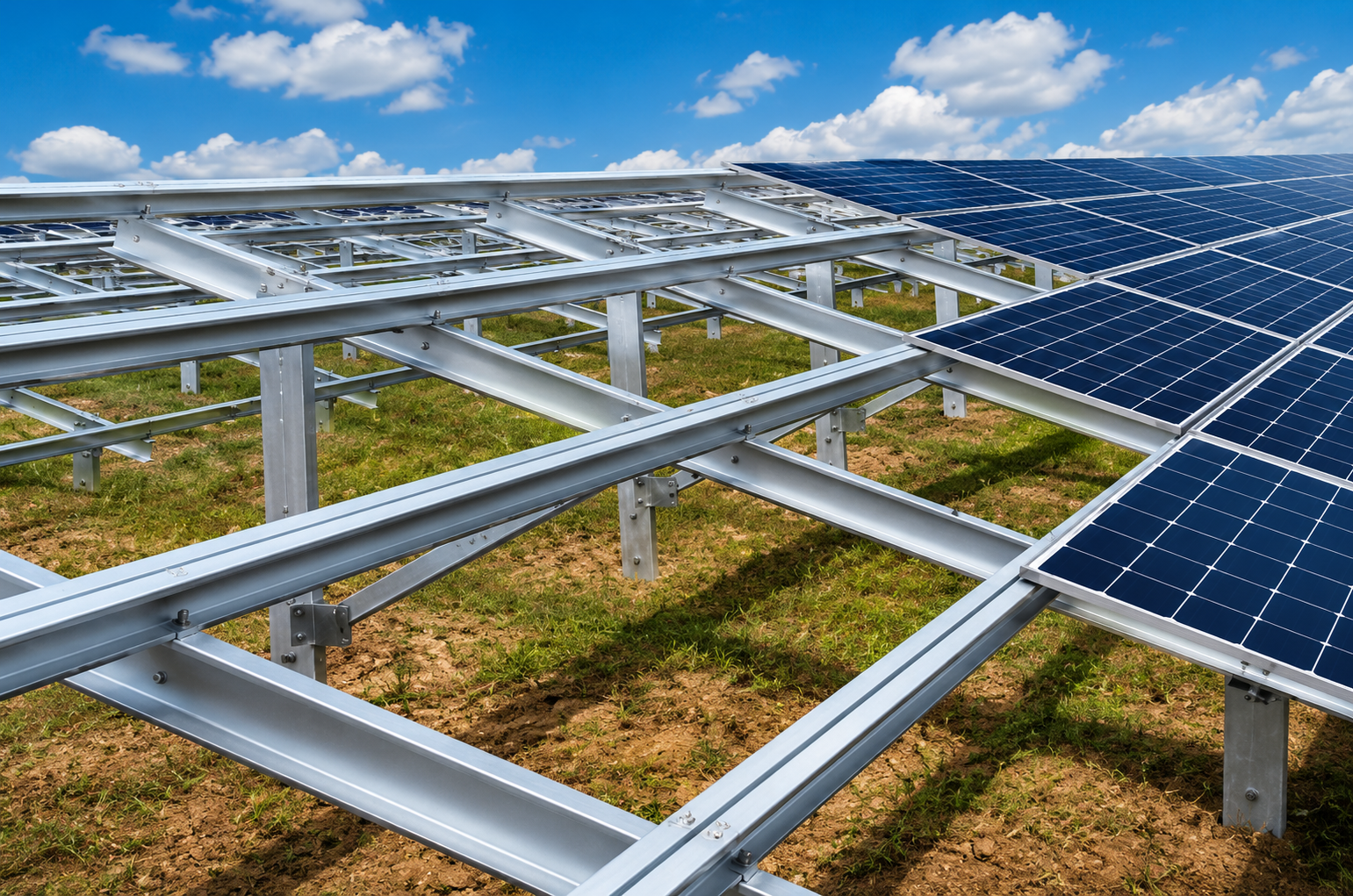

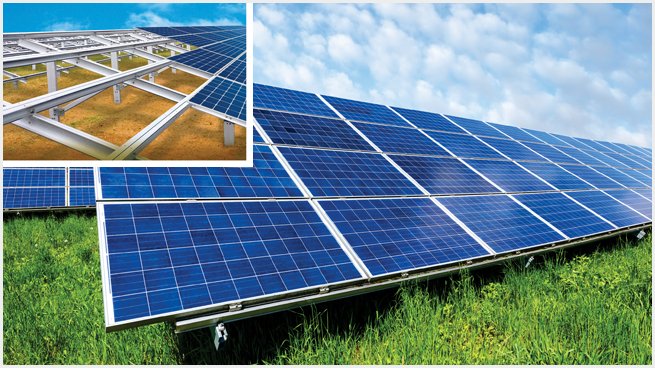

Solar Module Mounting Structure

Leading manufacturer of Solar Module Mounting Structures to support the Solar PV panels.

• In-house production, quality control and continuous product development guarantee excellence of our entire product range
• Large manufacturing capacity that enables quicker delivery
• Vast spectrum of sectional dimensions and thickness
• Reduced overall cost of structure and, in turn, reduced cost of solar power projects
• Suitable for virtually all terrains and site conditions due to flexible pile positioning and design adaptability, engineered for maximum strength-to-weight ratio and constructed with optimized material for maximum strength and durability

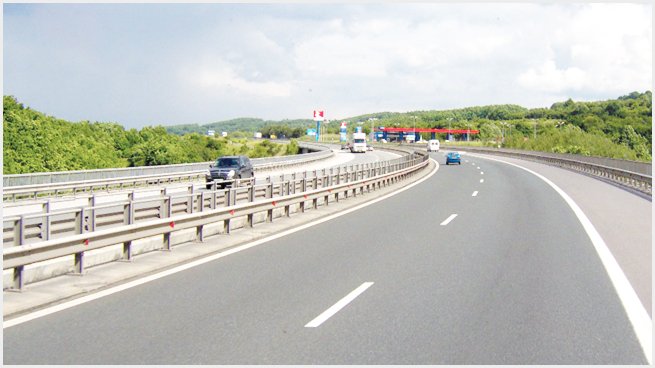

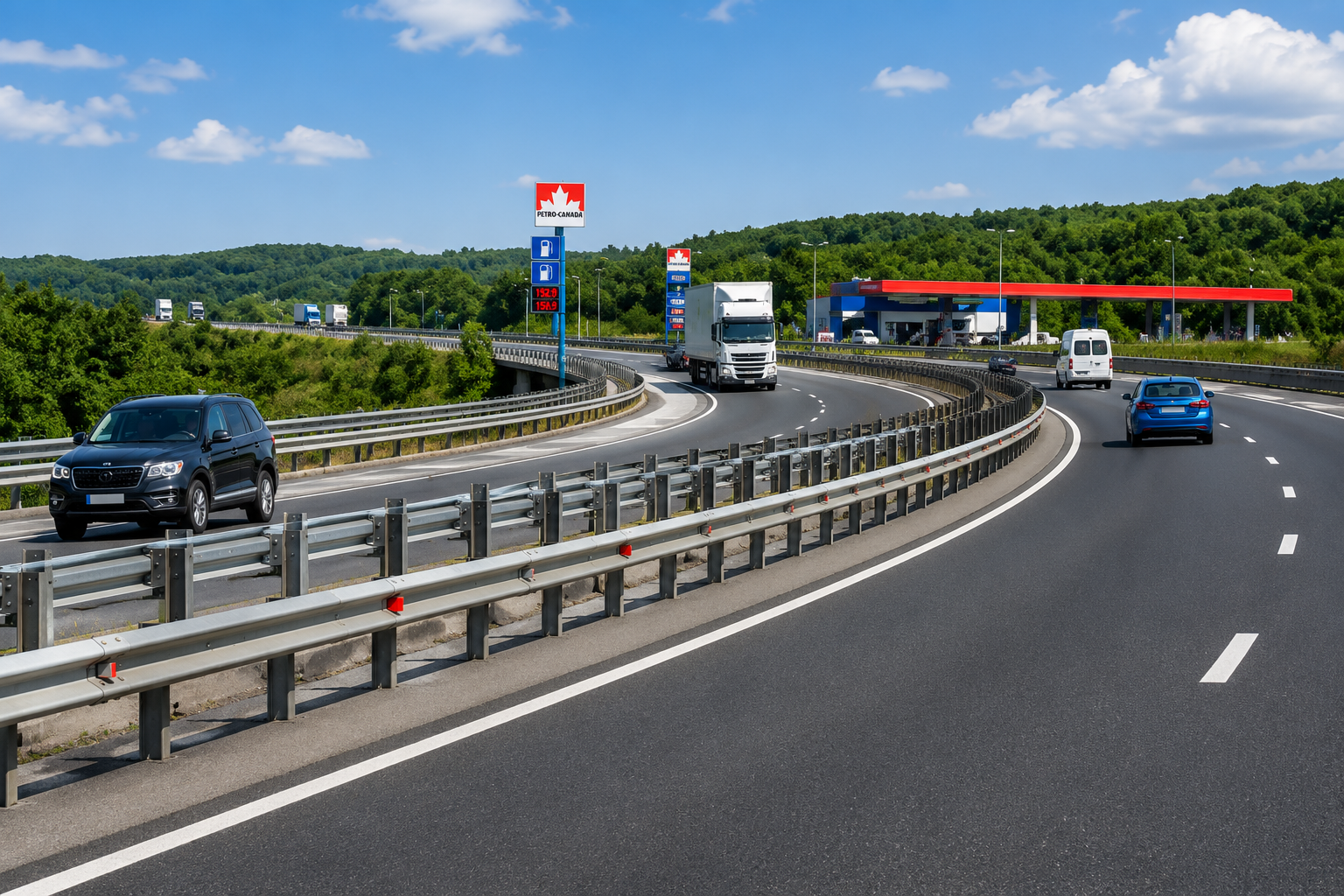

Metal Beam Crash Barrier

Vishal Pipes Ltd. is a leading manufacturer and supplier of metal beam crash barrier systems. Our range of road and highway safety barriers includes various types of W-Beam and Thrie-Beam systems.

These crash barriers are manufactured using superior class raw materials and the latest technology to ensure the finest quality products, backed by our ongoing programme of research and development.

Guard rails / metal crash barriers are effective road safety systems that help protect vehicles and passengers in case of an accident, and also serve as a good visual guide for drivers at night. Widely used for highways, flyovers, bridges and median barriers as road separators, hilly terrain, ghats, curves, high embankments, airports and railway stations, among others.

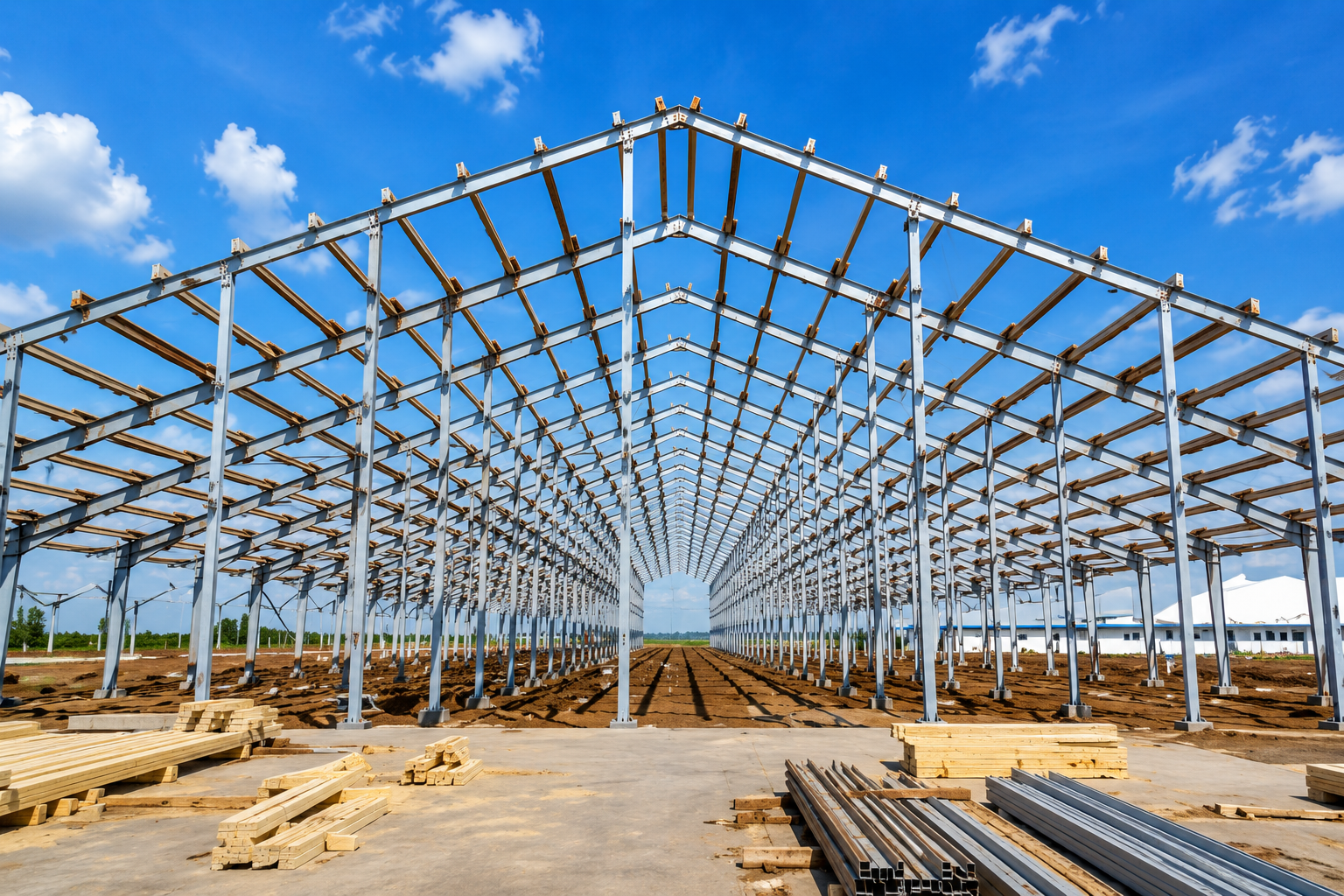

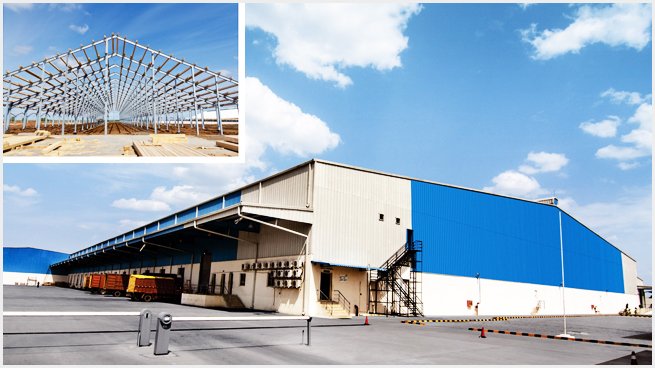

Pre Engineered Building

We are a manufacturer and supplier of Pre Engineered Buildings, designed as per the specifications of the client, fabricated using the best suited inventory of raw materials and manufacturing methods that efficiently satisfy a wide range of structural and aesthetic design requirements.

We offer a turnkey solution for PEB under one structure — designing, fabrication, production and installation. These structures are in high demand due to their energy efficiency and superior load bearing strength, and are developed for factory sheds, warehouses, dairy farm sheds and low rise industrial buildings.

Sturdy in construction, they require less maintenance and give constant performance, well known for attributes like weather resistance and easy installation.

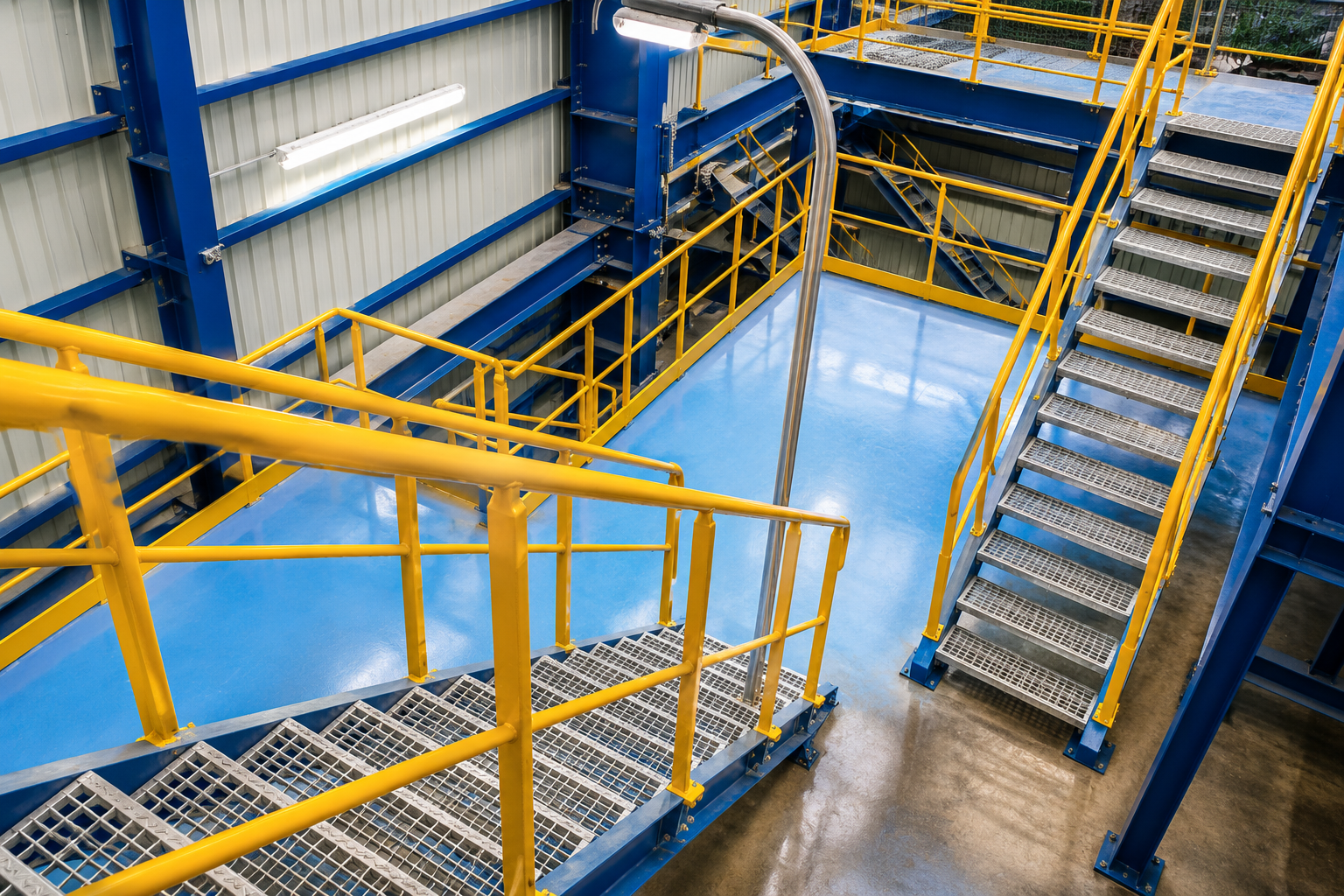

Structure For Power Plants

Steel Hand Rails

We offer customized, fabricated & cost effective handrail systems widely used to guard platforms, stairways, towers, danger zones and other areas where safety is a prime concern. These handrails are heavy duty type with better load carrying capacity, specially recommended for highly corrosive weather conditions.

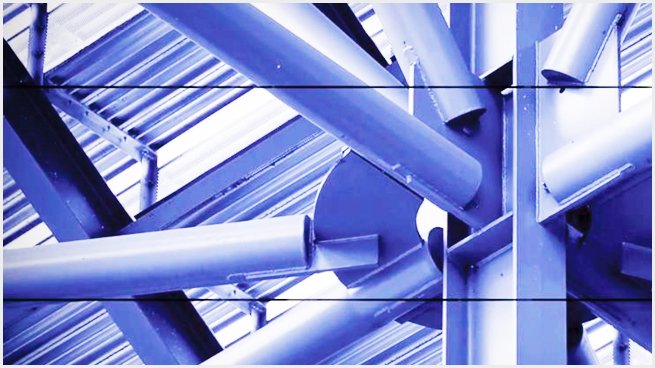

Secondary Structure

We offer customized secondary structure for power plants, made of steel tubes, angles, channels, beams & other steel components, supplied after proper surface preparation as per NACE guidelines and painted too.

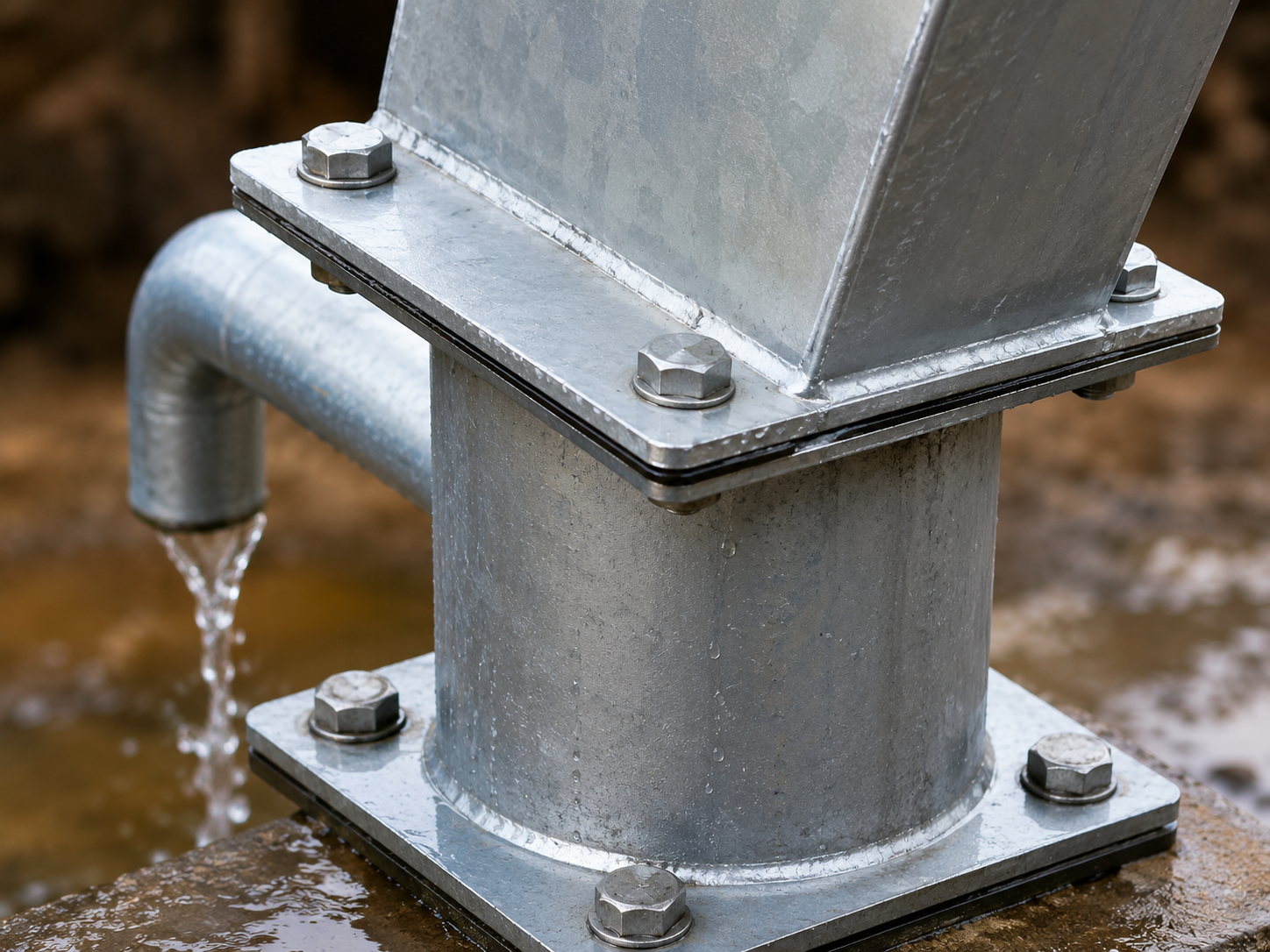

Deepwell Water Handpumps

Manufactured in accordance with IS 15500, our deepwell water handpumps are built for durability and dependable performance in rural and agricultural water supply applications.

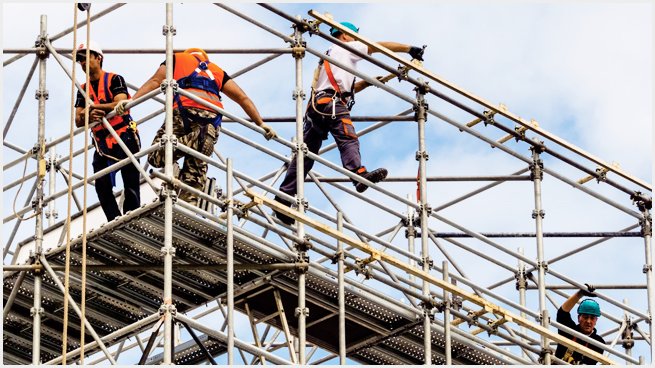

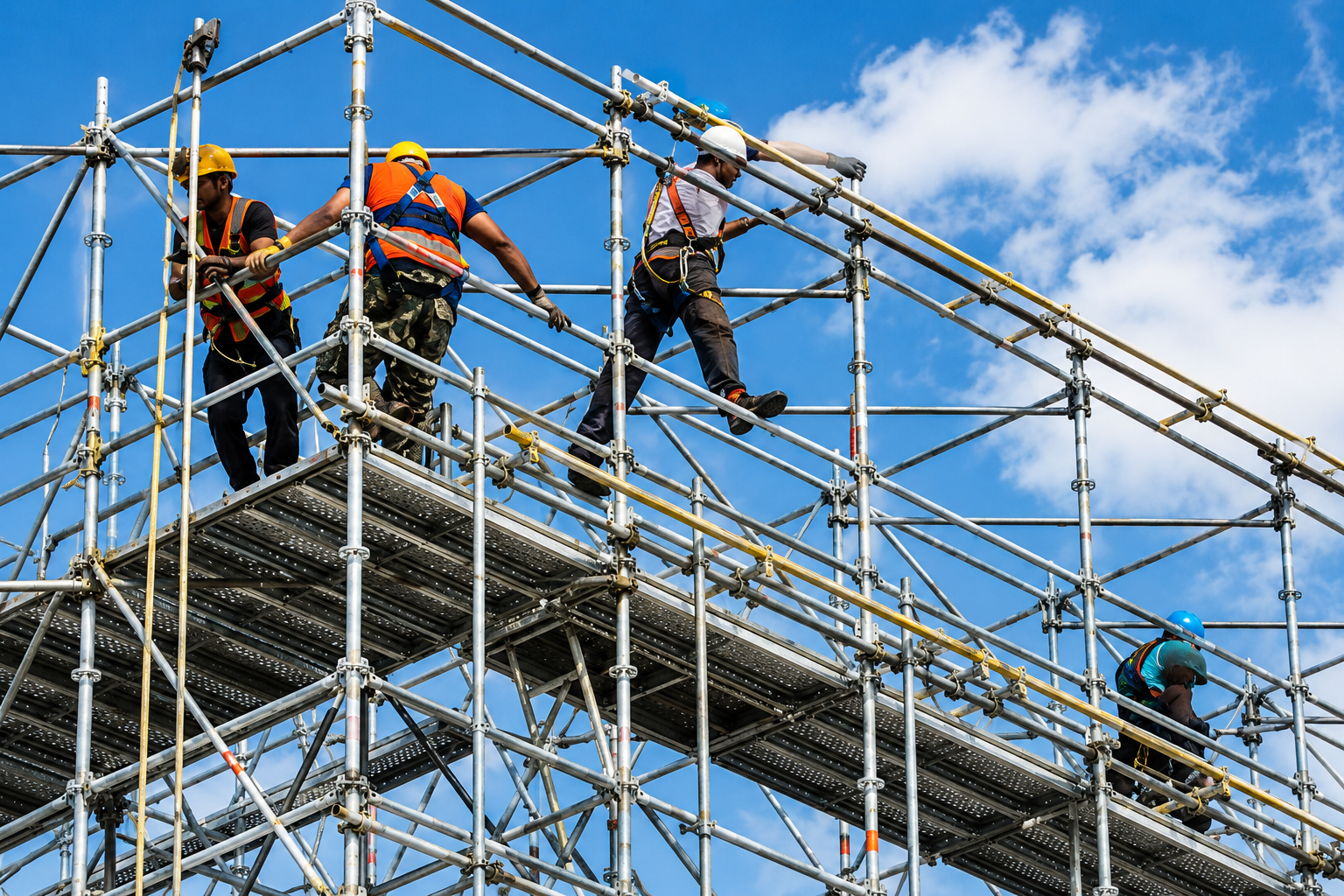

Scaffolding Solutions

Scaffolding is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man-made structures. Widely used on site to access heights and areas otherwise hard to reach, and also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects.

The Components Of Scaffolding

• A base jack or plate — a load-bearing base for the scaffold
• The standard — the upright component with connector joins
• The ledger — a horizontal brace
• The transom — a horizontal cross-section load-bearing component which holds the batten, board, or decking unit
• Brace — diagonal and/or cross section bracing component
• Batten or board — decking component used to make the working platform
• Coupler — a fitting used to join components together
• Scaffold tie — used to tie in the scaffold to structures
• Brackets — used to extend the width of working platforms
